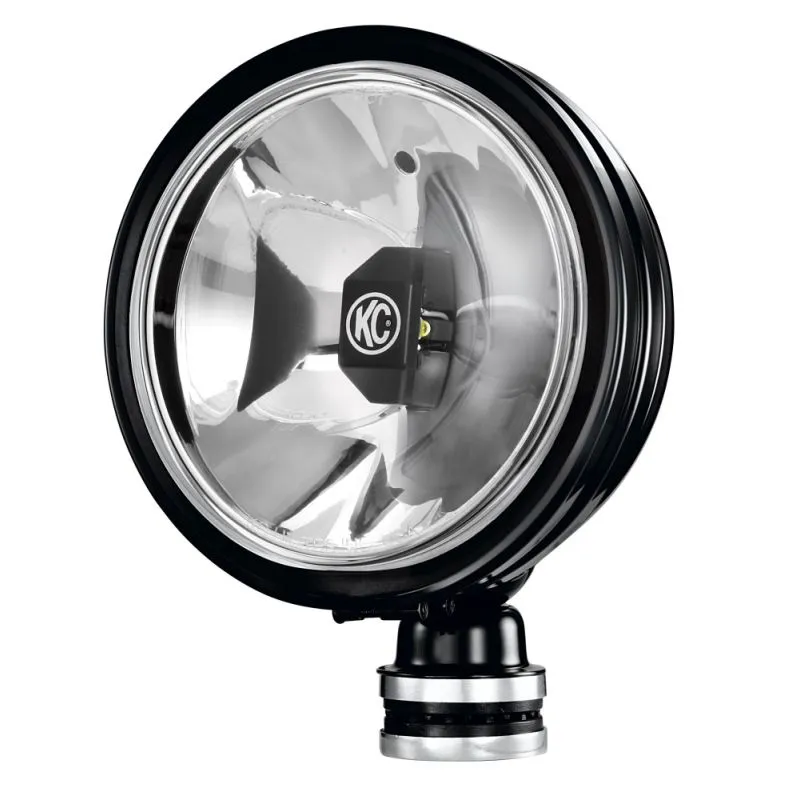

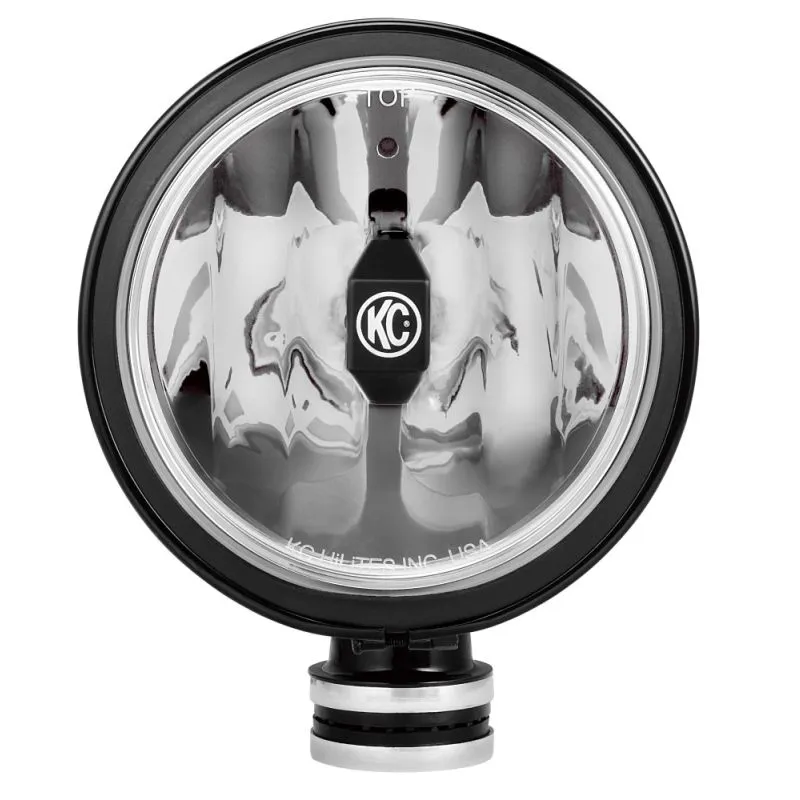

TheYotaGarage is proud to offer the KC HiLiTES 6" Daylighter with Gravity® LED G6 Pair Pack System for your Toyota truck.  KC's 6" Gravity LED Daylighter feature 20w LED bulbs in a SAE legal driving pattern. Black steel housing and polycarbonate lens with FLEXible base for easy aiming. Pair includes complete wiring harness, switches, and ABS stone guards.

GRAVITY® GRD EXTREME OUTPUT AND EFFICIENCY
Gravity® Daylighters are powered by our G6 LED optical inserts which deliver an incredible 1,310 lx @10m using only 1.63A per light. Our patented GRD (Gravity® Reflective Diode) system aims the LEDs into the precision reflectors to capture all the light and project it forward.

AVAILABLE BEAM PATTERN AND ADVANTAGES
Driving Beam - SAE & ECE street legal beams provide added peripheral visibility and while reaching further than stock lights.

ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION
Our time-tested Daylighter shock mount system is resilient and allows users to accurately aim the lights ensuring beam stability and consistency.

RACE PROVEN STRENGTH & DURABILITY
The race-proven steel housing combined with our IP67 rated Gravity® G6 LED optical insert creates an extremely strong and durable combination that will withstand the harshest of environments and terrains.

FEATURES:

• 2 x 20W Gravity® LED G6 optical inserts

• Black Powder Coated Steel housing

• Hard Coated Polycarbonate Lens
• Driving Beam Pattern
• Raw Lumens: 2,300 lm

• Lux @ 10 Meters: 1,310 lx

• Candela: 131,000 cd

• Beam Distance (Meters): 724m

SPECIFICATIONS (PER LIGHT):

• Wattage: 20W

• LED Source: CREE XPL HD LED

• Amp Draw: 1.63A

• Voltage: 9V-32V

• IP Rating: IP67

• Product Dimensions: W - 6.22" x H - 8.42" x D - 5.38"

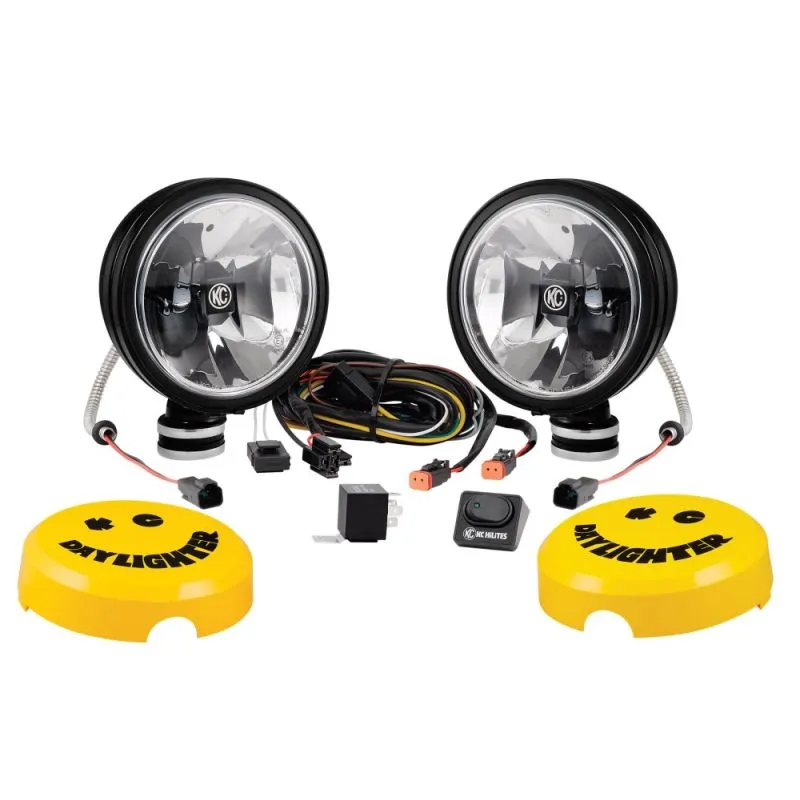

PARTS INCLUDED:

• (2) 20W 6" Gravity® LED Daylighter lights

• Deluxe Wiring Harness w/ 2-Pin weatherproof connectors

• (2) Protective KC Daylighter light Guards

• 30A Illuminated Switch w/ Switch Panel
